Application 4

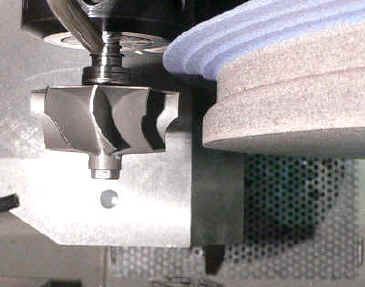

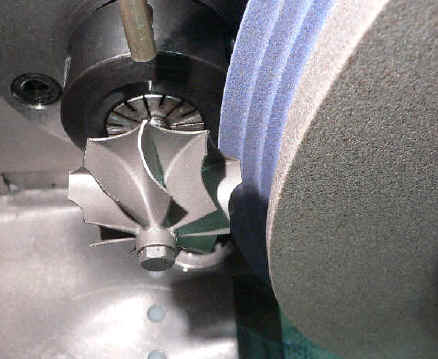

APPLICATION EXAMPLE - TURBO IMPELLER PROFILE & GROOVE
Workpiece - High temperature alloy
Workhead
- Heavy-duty with collet chuck
Tailstock
- None
Grinding Wheel
- Vitrified CBN, or conventional, application dependant

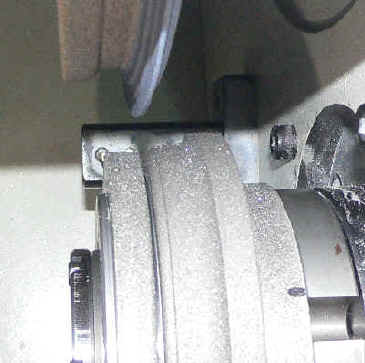

Dressing
- Diamond roll or diamond disk
Gauging
- Post-process
Grinding fluid
- Neat oil or emulsion
Presentation
- Pallets or conveyor
Handling
- Twin gripper
Grind Time
- Application dependant
Load time
- 10 sec (non-cutting time 2-seconds for ‘Vector-Twin’)
