Workpiece - Hardened steel

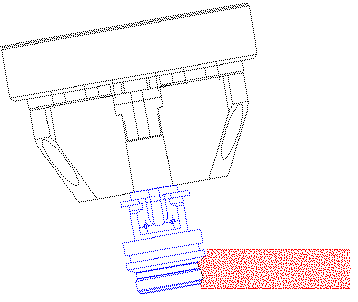

Workhead - Universal sliding with Forward 130mm chuck, 10 degree approach

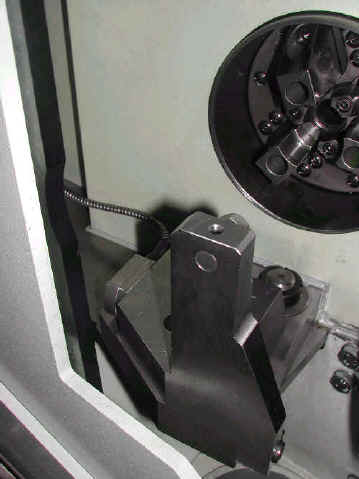

Tailstock - Flat face stop

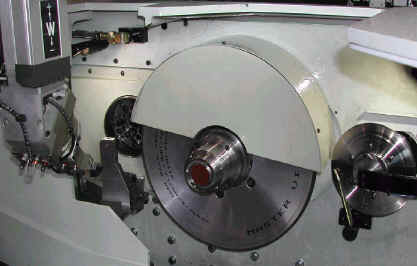

Grinding Wheel - 400mm x 30mm vitrified bond CBN, auto balance
Dressing - Diamond disc
Gauging - None
Grinding fluid - Neat oil, mag separator + twin drum centrifuge, heat exchanger for chilled water
Presentation - Pallets (2) 5 x 4
Handling - Twin grippers @ 45 deg, 180deg indexing
Grind Time - 22 sec
Load time - 8 sec
