Workpiece - Hardened steel

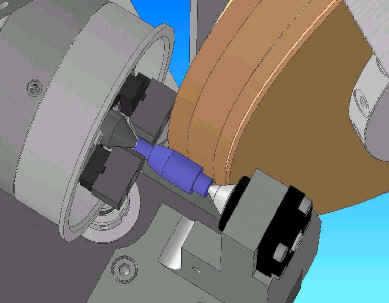

Workhead  - Universal sliding with CMT auto driver, 30deg approach

Tailstock  - Fixed, male centre

Grinding Wheel - 450mm x 45mm recessed aluminium oxide, 50 m/s auto balance

Dressing - Multi-point blade, 0.008mm / 15

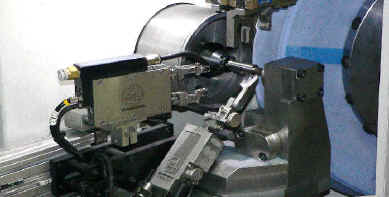

Gauging - Caliper + shoulder flag

Grinding fluid - Oil emulsion, Lift tank to paper roll filter

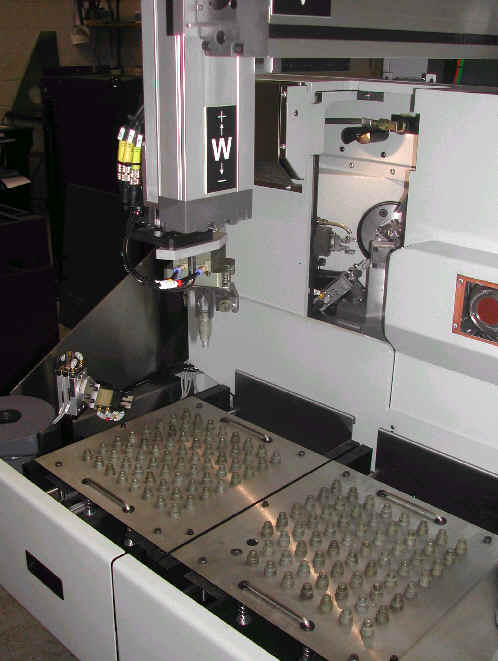

Presentation - Pallets (2) 8 x 8

Handling - Side-by-side grippers, independent 90deg, re-orientation unit

Grind Time - 22 sec.  Load time - 8 sec
